Cerkamed BTR Pen
Broken Tool Remover for Endodontic Instrument Retrieval
The Cerkamed BTR Pen is a stainless-steel broken instrument removal system designed to help retrieve separated endodontic instruments from the root canal. Used with compatible nitinol loop tips, it allows the clinician to engage, grip and remove broken file fragments as part of a controlled retreatment workflow.
Designed for separated instrument removal
BTR Pen is used with a fine nitinol loop tip to access and grip a broken endodontic instrument fragment inside the canal. The loop is placed around the exposed fragment, tightened and used to support controlled removal.
- For removing fragments of broken endodontic instruments
- Uses compatible nitinol loop tips
- Useful in retreatment and separated file cases
- Designed to grip the instrument fragment securely
- For professional endodontic use only
Fine nitinol loop access
The BTR system combines an ultra-thin working tip with a highly elastic nitinol loop. This helps the clinician reach the broken fragment in narrow or curved canal spaces where access is limited.
- Highly elastic nitinol loop
- Tips available in 0.3mm, 0.4mm and 0.5mm sizes
- Useful after coronal exposure of the fragment
- Can be used alongside ultrasonic loosening protocols
- Single-use loop tips
Toothsaver clinical view
Broken file removal is a risk-managed endodontic procedure. The BTR Pen can be a very useful retrieval tool once adequate straight-line access, visibility and coronal exposure of the fragment have been achieved.
In most cases, the clinical decision is not simply whether the fragment can be removed, but whether removal is safer than bypassing, leaving the fragment under observation, or referring the case. Case selection, CBCT assessment, magnification and conservative dentine removal are critical.
What is included in the BTR Pen kit?
The full BTR Pen kit includes the reusable instrument and the components needed to calibrate and operate the nitinol loop system.
- BTR Pen stainless-steel tool – 1 pc
- BTR calibrator – 1 pc
- BTR tip Ø 0.3mm – 5 pcs
- BTR springs – 2 pcs, soft and hard
- Third middle spring fixed on the device
- Silicone BTR O-rings – 3 pcs

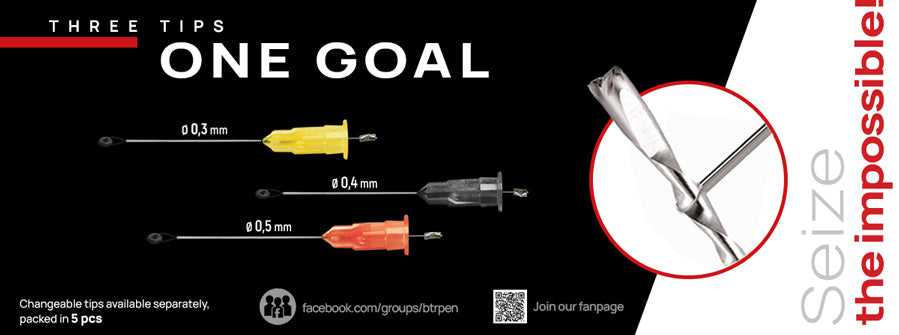

Replacement BTR tips
Replacement BTR tips are available separately in packs of five. Choose the tip size based on canal access, fragment size, canal curvature and the amount of coronal exposure achieved.
| Tip option | Best suited to | Clinical comment |
|---|---|---|
| Size 3 / Ø 0.3mm | Narrower canals and more restricted access | Fine access option; supplied in the full kit as five tips. |
| Size 4 / Ø 0.4mm | General broken file retrieval workflows | A mid-size replacement tip option. |
| Size 5 / Ø 0.5mm | Larger canals or when more loop control is required | Wider tip option where canal anatomy allows access. |
Typical clinical uses
- Separated rotary file retrieval
- Broken hand file removal
- Endodontic retreatment cases
- Instrument retrieval after ultrasonic loosening
- Cases where bypassing is not possible or not preferred
- Specialist endodontic broken instrument management
Used alongside ultrasonic preparation
In many broken instrument cases, ultrasonic tips are first used to expose and loosen the coronal portion of the fragment. The BTR loop can then be positioned around the fragment to create a controlled grip for retrieval.
Dentine preservation is important. Excessive staging or ultrasonic use can weaken the root, so the retrieval approach should be carefully planned.
Clinical workflow context
Always follow the manufacturer's instructions for use and use appropriate endodontic magnification and isolation. A typical workflow may include:
- Assess restorability, canal anatomy and fragment position.
- Consider radiographs or CBCT where clinically justified.
- Isolate the tooth with rubber dam.
- Create conservative straight-line access to the fragment.
- Expose and loosen the coronal aspect of the separated instrument where appropriate.
- Select the appropriate BTR loop tip size.
- Position the nitinol loop around the fragment and calibrate the loop.
- Grip and retrieve the fragment with controlled movements.
- Continue canal disinfection, shaping and obturation according to the treatment plan.
Important clinical and sterilisation information
BTR Pen is for professional dental use only. Broken instrument removal should be undertaken with appropriate training, isolation, magnification and case selection.
The stainless-steel BTR Pen is designed for multiple use, while compatible nitinol loop tips are single-use. Inspect the instrument before each use for contamination, cracks, bends, splits, scratches or other damage.
BTR tips are supplied non-sterile and must be sterilised before use. Sterilise the tip without the protective cup and follow the manufacturer's instructions and autoclave guidance.
Avoid excessive dentine removal, excessive ultrasonic staging or uncontrolled force during retrieval, as these can increase the risk of ledging, perforation, transportation or root weakening.
Why buy BTR Pen from Toothsaver?
Toothsaver is a clinician-led UK dental supplier with a strong focus on endodontic retreatment, instrument retrieval and specialist endodontic workflows. We select products based on their practical usefulness in real clinical dentistry.
- Cerkamed BTR Pen kit and replacement loop tips available
- Useful for separated file retrieval and retreatment workflows
- Compatible tip sizes: 0.3mm, 0.4mm and 0.5mm
- Available alongside ultrasonic tips, retreatment kits and endodontic files
- Clinician-led Toothsaver support
Frequently Asked Questions
What is the BTR Pen used for?
The BTR Pen is used with a compatible nitinol loop tip to remove fragments of broken endodontic instruments from the root canal.
What comes in the BTR Pen kit?
The kit includes one BTR Pen stainless-steel tool, one BTR calibrator, five 0.3mm BTR tips, two additional springs and three silicone BTR O-rings.
Are BTR tips reusable?
No. The BTR Pen-compatible nitinol loop tips are single-use.
Are the BTR tips supplied sterile?
No. BTR tips are supplied non-sterile and must be sterilised before use according to the manufacturer's instructions.
Which BTR tip sizes are available?
Compatible BTR tips are available in 0.3mm, 0.4mm and 0.5mm sizes. Toothsaver lists these as Size 3, Size 4 and Size 5 replacement loop-tip packs.
Can the BTR Pen remove every broken file?
No instrument can guarantee removal in every case. Success depends on the tooth, canal anatomy, fragment position, curvature, visibility, access, previous treatment and the amount of safe dentine removal possible.
Should ultrasonic tips be used before the BTR Pen?
Often, ultrasonic tips are used to expose or loosen the coronal aspect of the fragment before loop retrieval. The safest sequence depends on the individual case and the clinician's endodontic protocol.
Who should use the BTR Pen?
The BTR Pen is for dentist use only and is best suited to clinicians with suitable endodontic training, magnification and experience in broken instrument management.
