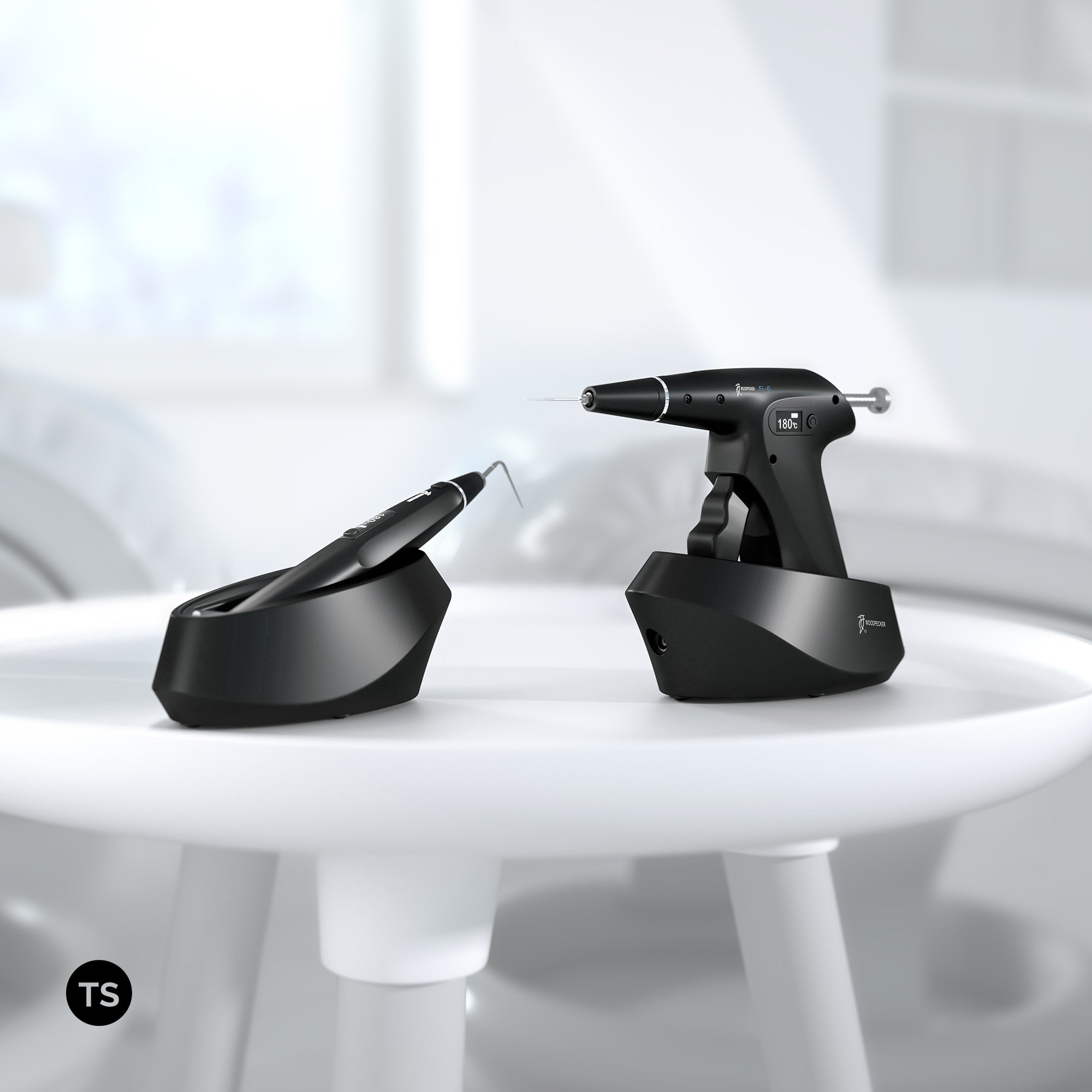

Fi-G | Back Fill Obturation Device


Price:
Sale price£479.00

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Woodpecker's Gutta-percha back fill obturation device

Click here to find out more about the Fi-G.

Also see Fi-E (electric device).

Back fill

Delivers soften gutta-percha during oburation through a malleable needle.

Diffusion function

Diffuse the root canal filling material (gutta-percha) to the lateral canals and the apicks part of the root canal system.



Pressing function

All root canals, including the lateral root canal, are optimally filled by heating and vertical compaction. Can be used with a range of sealers. Onefil is our sealer of choice.  See also gp pellets and gp vertical compaction pluggers.

FREE x 4 obturation needles with each unit



Fi-G Features

• Wireless, ergonomic design.

• Single button for ease of use.

• Quick heating within 15 seconds.

• Reduced waiting time.

• 0.5mm injection needle.

• Easier to reach the apical 3mm of the canal.

• Dual screen display.

• 360º rotatable injection needle.

• Safer protection mechanism.

• Automatic power-off after 10 minutes.

Accessories:

  • Power adapter with cable x1
  • Needle x4 (23G 24mm needle, 23G 28mm needle, 25G 24mm needle x2)
  • Heat insulation hood x2
  • Heat insulation sleeve of needle x1
  • Brush x2
  • Wrench x1

Technical Specifications

Classification: Class II (AC/DC power adaptor)

Available temperatures: 150ºC, 180ºC, 200ºC, 230ºC

Charging time: 2.5 hours (3 hours recommended for first time charging)

Battery life: 15 x 10 minutes working time. (2.5 hours)

Power input: AC100V-240V, 50/60Hz, 0.8mA

Power output: DC15V/1.6A

Battery capacity: 2000mAh

Device size: 31.9mm x 152.5mm x 114.9mm

Charging dock size: 75.5mm x 149.7mm x 62.6mm

Device weight: 170g

Charging dock weight: 207g

Power adaptor weight: 167g

Storage conditions:

Temperature: -20ºC to 50ºC

Humidity: 10% to 93%

Pressure: 70kPa to 106kPa

Usage conditions:

Temperature: -20ºC to 50ºC

Humidity: 10% to 93%

Pressure: 70kPa to 106kPa
