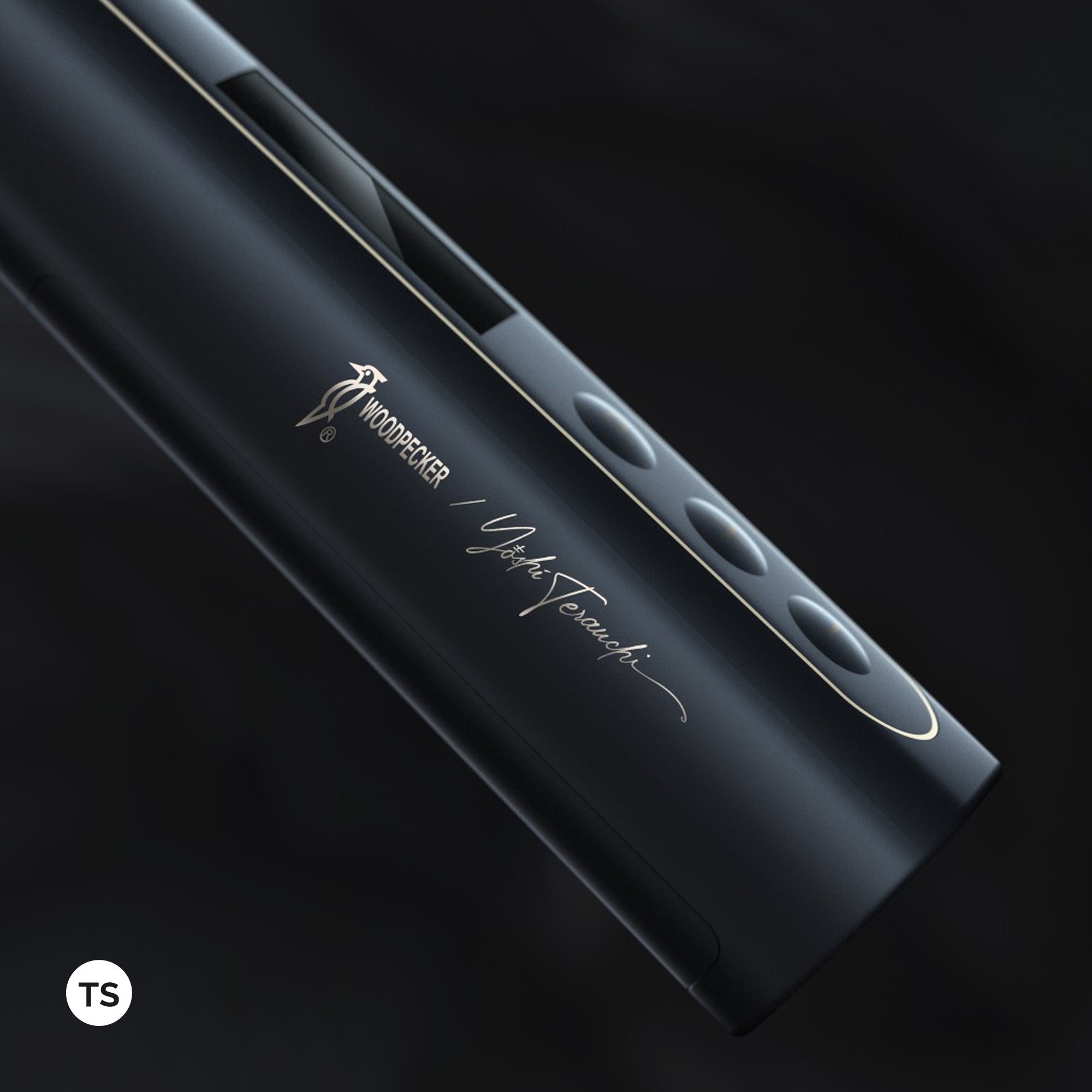

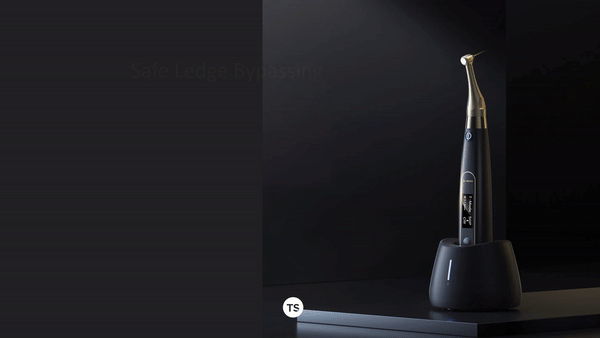

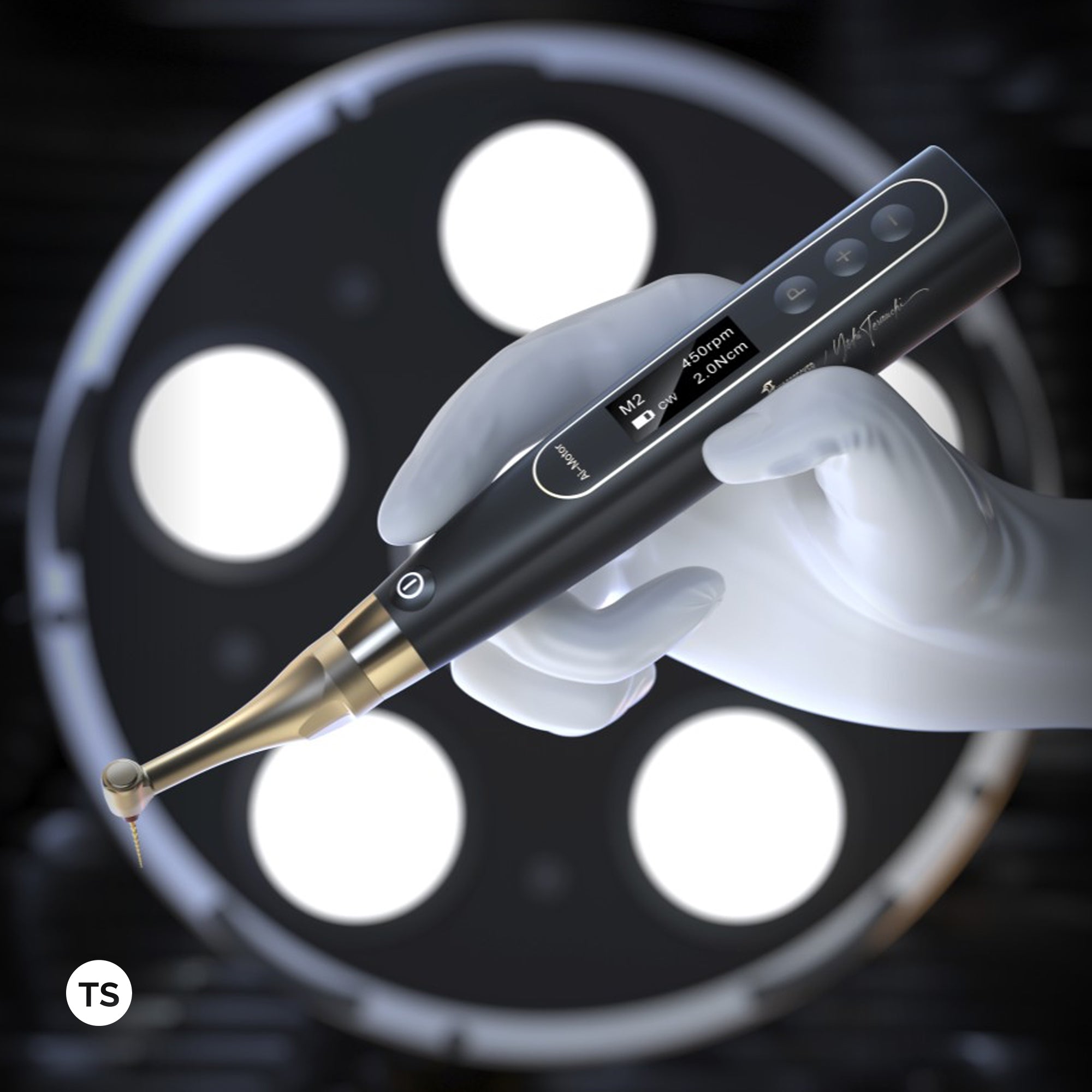

Ai Motor Black Edition with T-Mode by Dr Yoshi Terauchi

AI Motor

Brushless endo motor with apex locator - Redesigned for experts with built in T-Mode, by Dr. Yoshi Terauchi, and up to 2500RPM speed for retreatment and advanced endo.

The Ai Endo motor is a cordless endo motor and has root canal measurement capability. It can be used as an endo motor for preparation and enlargement of root canals or device for measuring canal length.

Key features:

T-mode for bypassing ledges.

You can use any file system with this motor. It’s not locked.

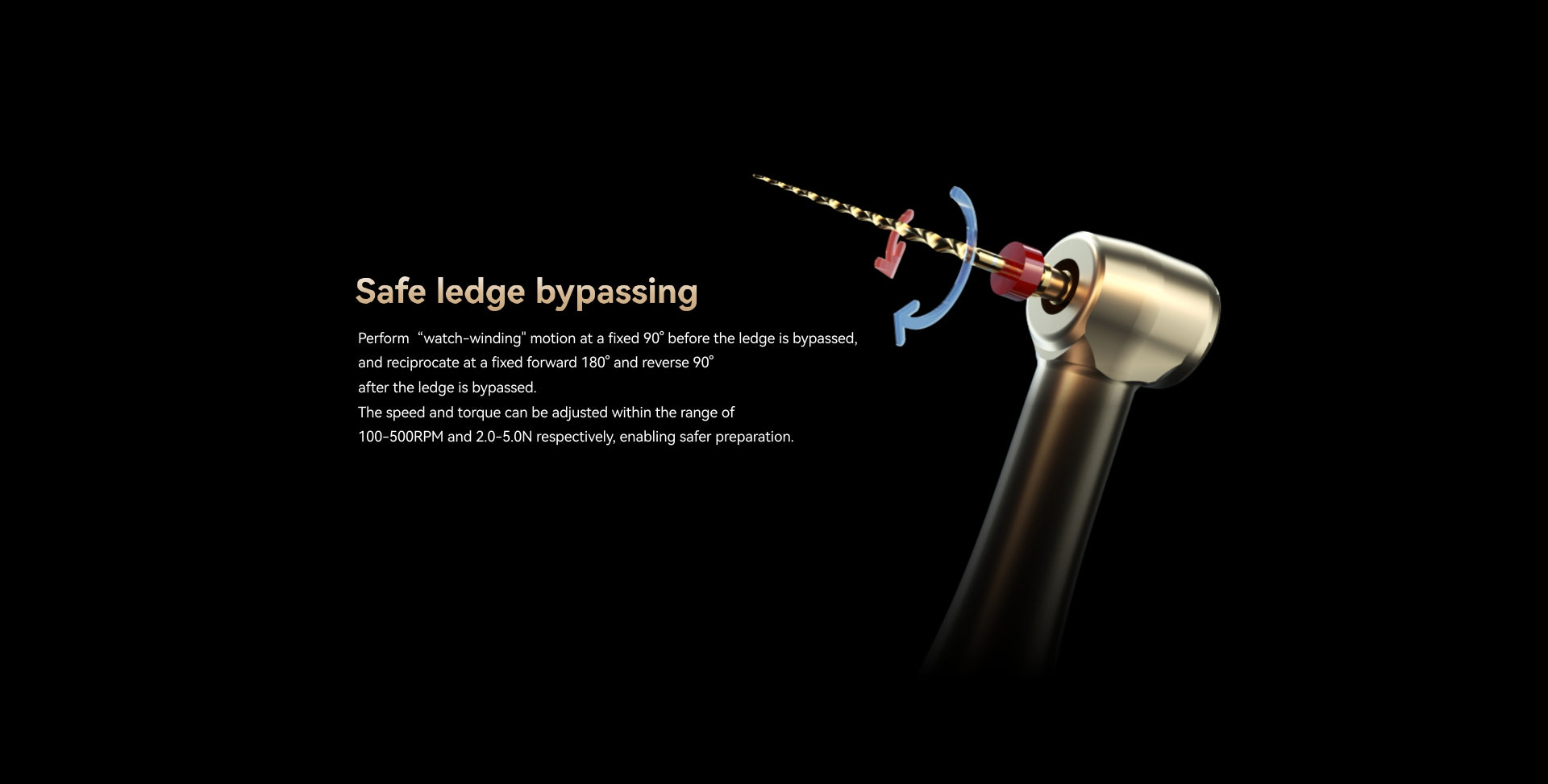

Why T-mode?

• Use watch winding motion; 90 degree clockwise and 90 degree counterclockwise up to the ledge.

• Use a pre-curved file

• Small up and down amplitudes of motion for the file to climb up the ledge

• Once file has bypassed the ledge, press the bottom again (without withdrawing the file).

•This then changes to a rotational mode and can quickly smooth the ledge without withdrawing the file.

• The speed and torque can be adjusted within the range of 100-2500RPM and 0.4Ncm - 5.0Ncm

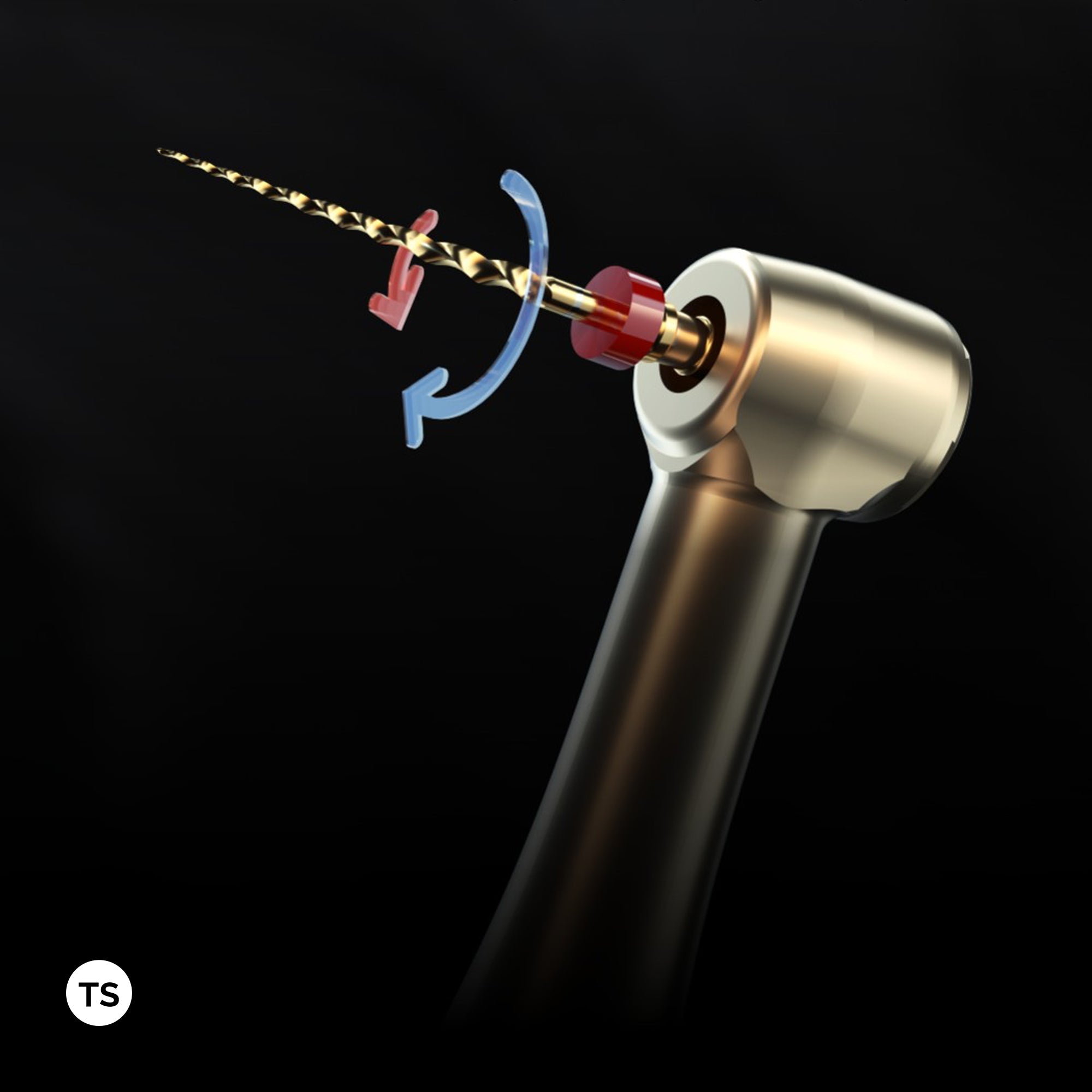

Also now with contra-angle handpiece for vertical motion.

The red and black editions have the same features and an additional contra-angle head with vertical can be purchased to ensure the ledges can be bypassed freely and safely without the need for manual insertion and withdrawal. (Black and red motors are the exact same, just a different colour)

https://www.youtube.com/watch?v=XXoKLwddBHI

Link for head with vertical motion here.

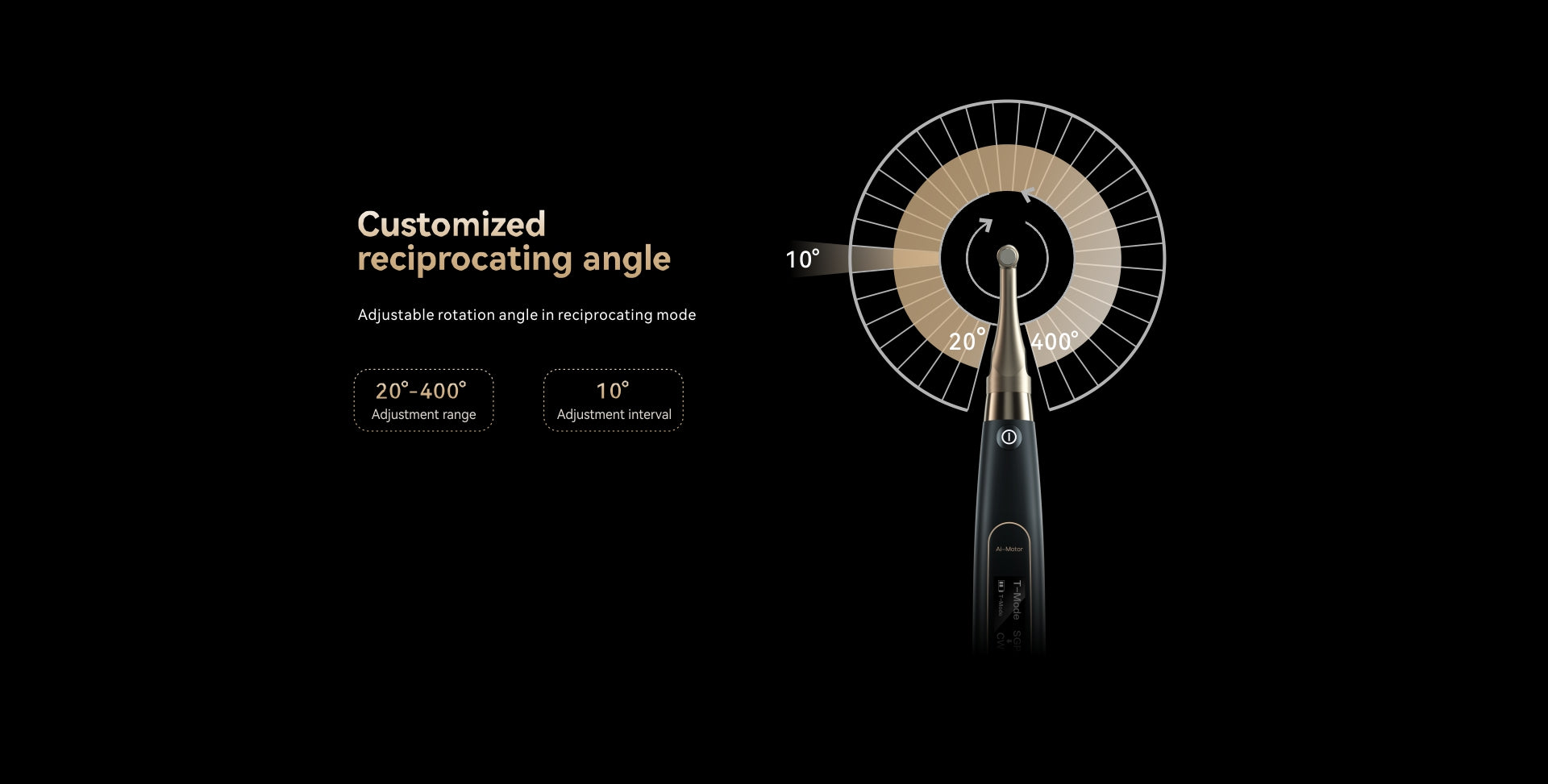

Customised reciprocating angle

• The Ai Endo motor has adjustable rotation angle in reciprocating mode.- This is very useful when trying to negotiate challenging anatomy or bypassing separated instruments.

• 20º - 340º adjustment range.

• 10º adjustment intervals.

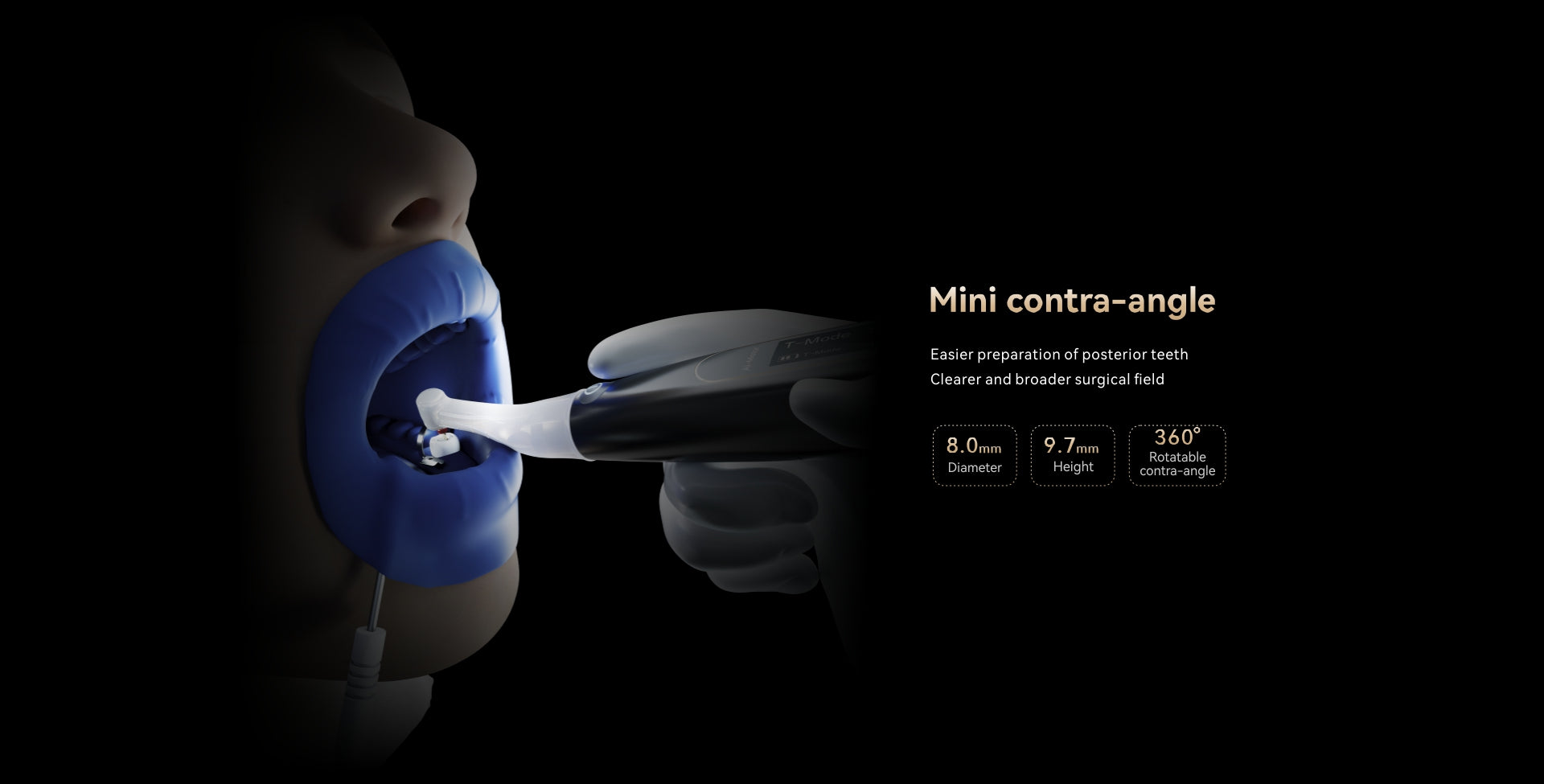

Mini contra-angle

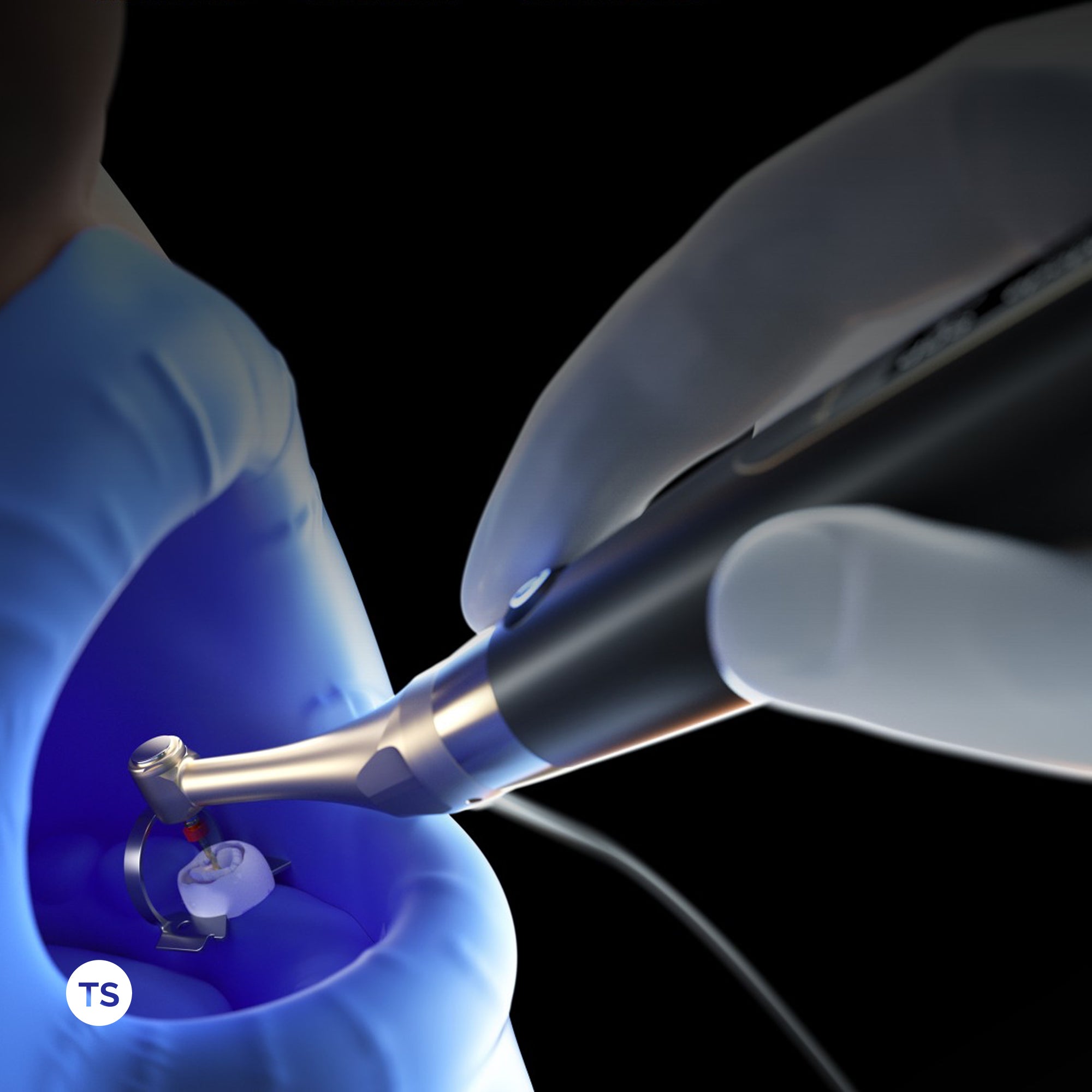

• Easier preparation for posterior teeth or when access is challenging.

Also consider control memory files which can be prebend to make access into the canals easier.

• 8.0mm diameter.

• 9.7mm height.

• 360º rotatable contra-angle, very useful function when using the apex locator.

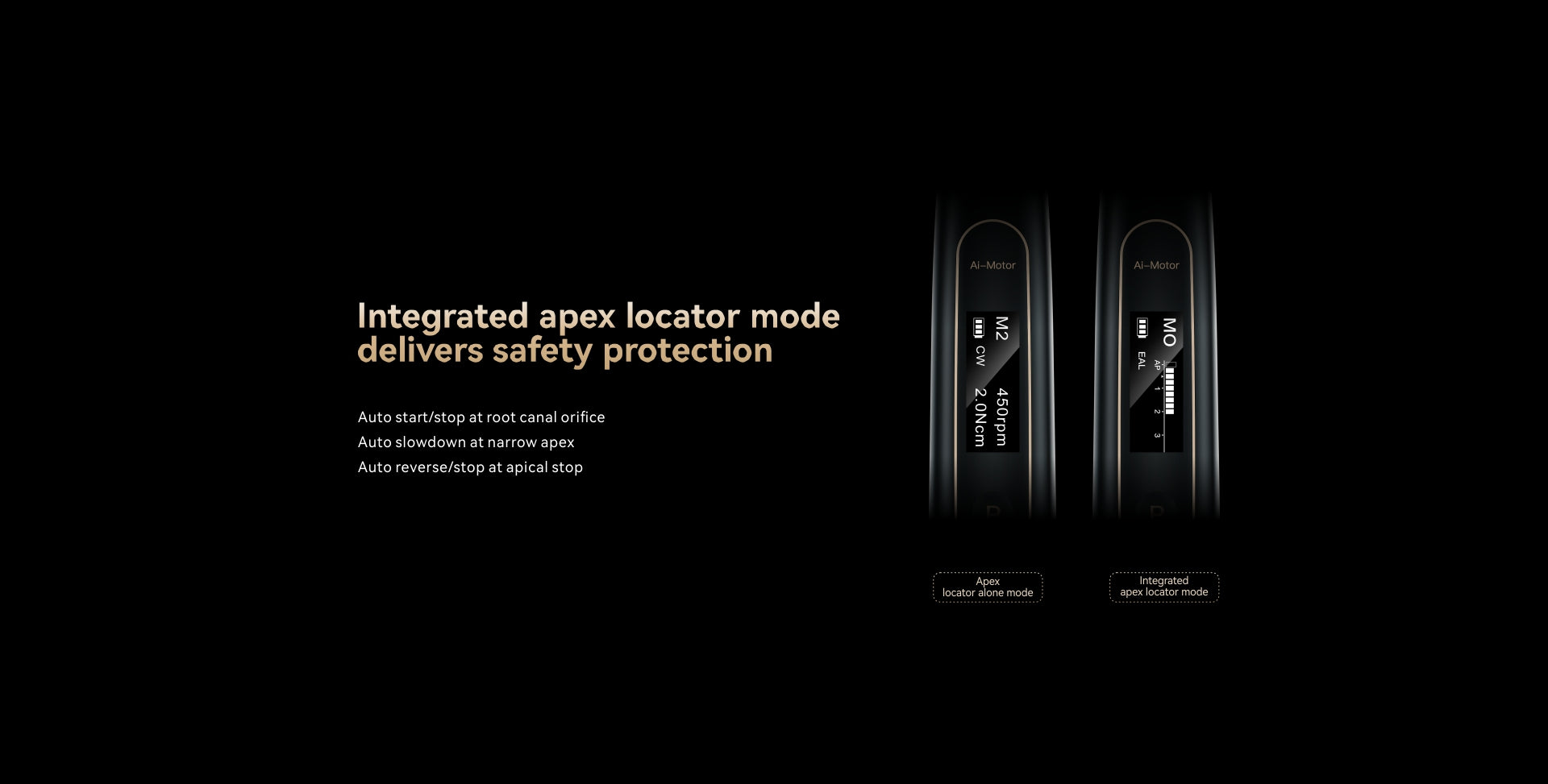

 Integrated apex locator mode delivers safety protection

• Auto start/stop at root canal orifice.

• Auto slowdown at narrow apex.

• Auto reverse/stop at apical stop.

• Integrated apex locator mode.

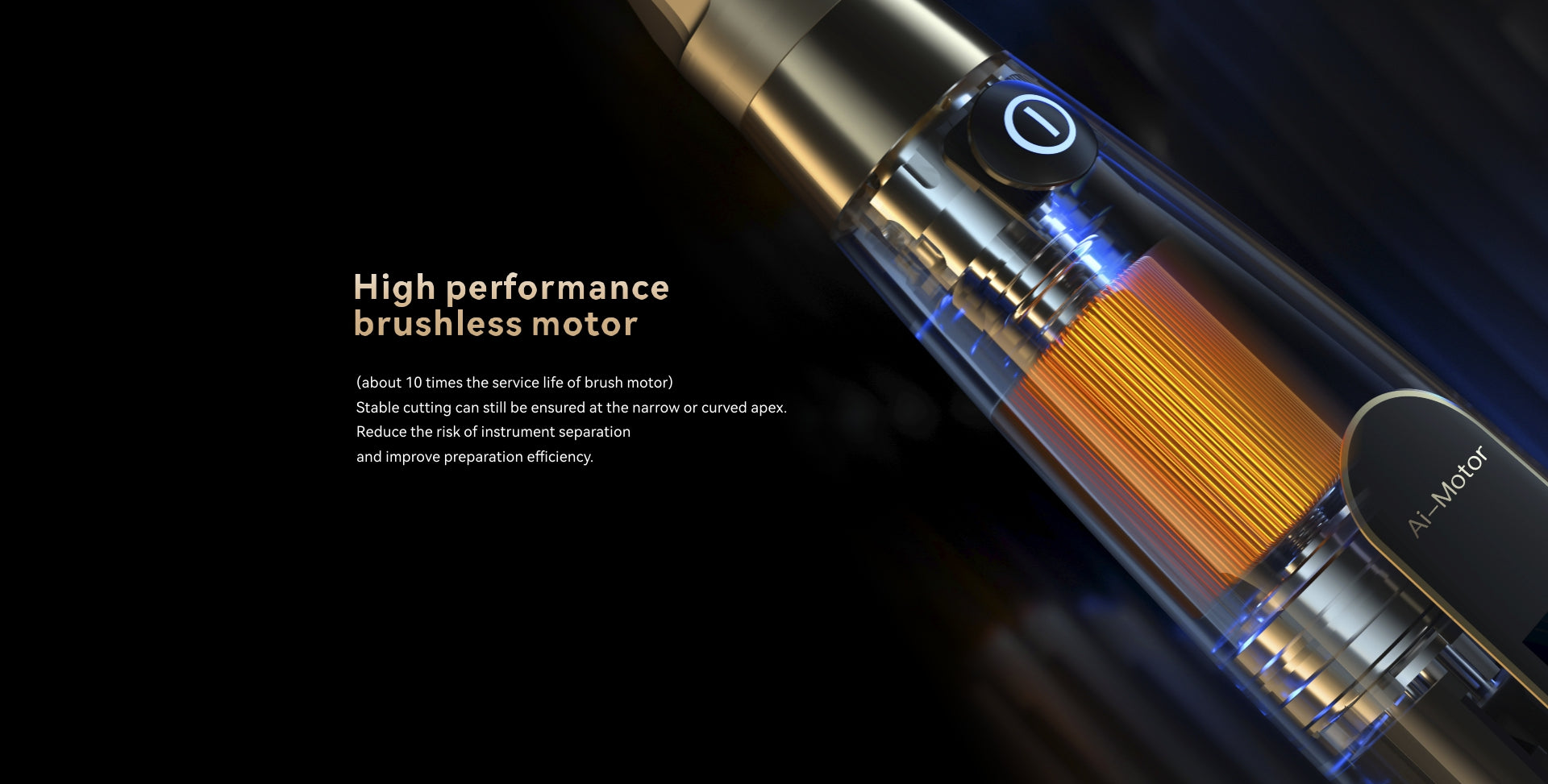

High performance brushless motor

• 10x the service life of the brush motor

• Stable cutting can still be ensured at the narrow or curved apex.

• Reduce the risk of instrument separation and improve preparation efficiency.

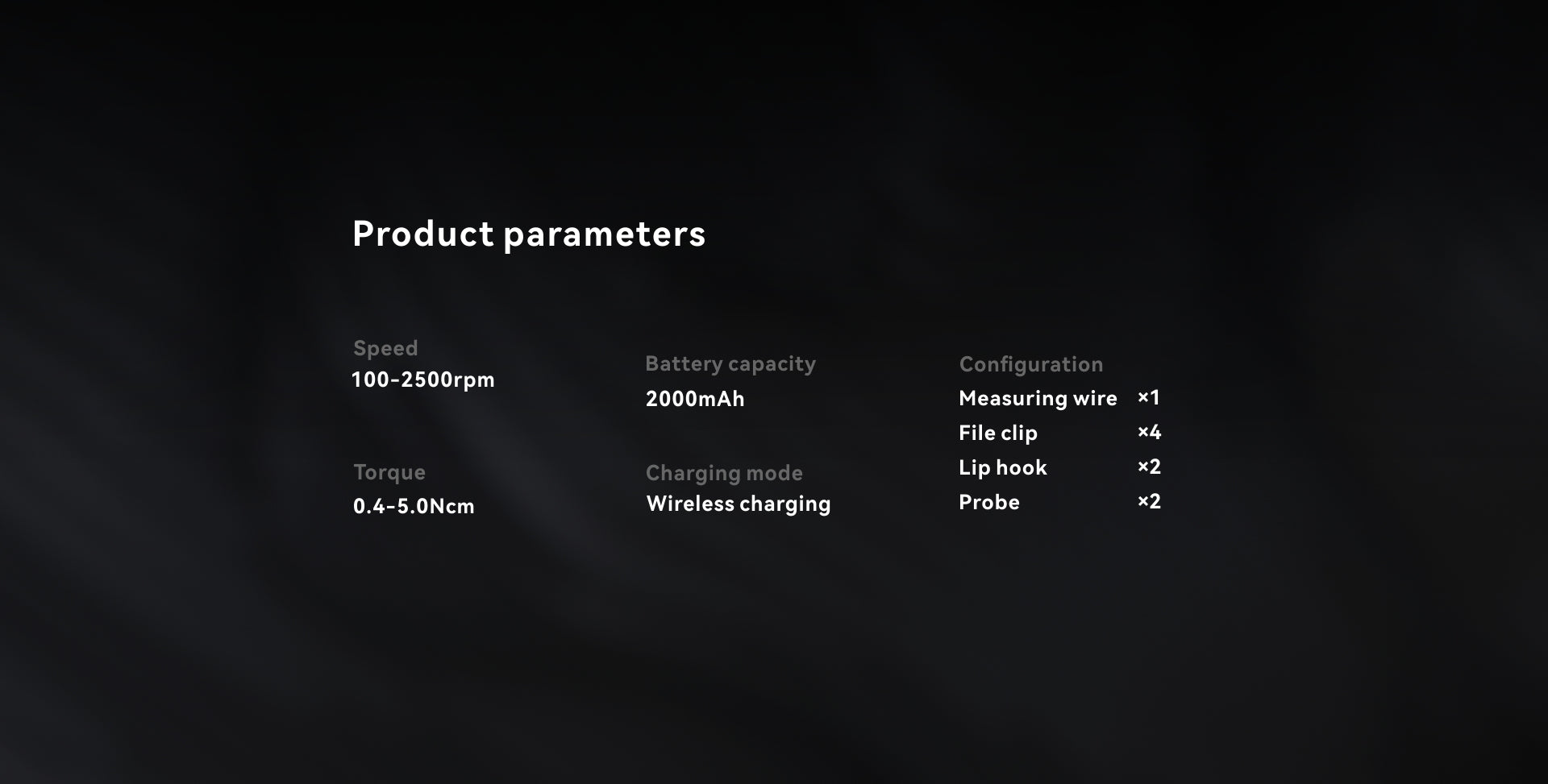

Technical Specifications

Speed: 100-2500RPM

Torque: 0.4-5.0Ncm

Charging mode: Wireless charging

Battery Capacity: 2000mAh

Also consider adding an extra handpiece or the handpiece for vertical motion. Contact us for specialist information on how to use.
